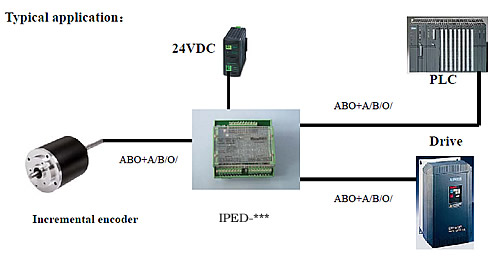

China | Deutsh         Home  About Us Products Application Download News Contact           Home  Products  Accessories  Interface PRODUCTS  Sensoric  Rotary Encoder  Linear & Angle Positioning  Accessories      Coupling      Cable Connector      Interface               IPED incremental encoder pulse Splitter    Compact design,Suitable industry application for the incremental encoder signals send two equipments,like PLC and motor driver.         Main Features    ■ Protection class IP20    ■ Input push-pull,HTL (A+B+O and A/+B/+O/)    ■ Output push-pull,HTL(A+B+O and A/+B/+O/)    ■ Two outputs,5V RS422(A+B+O and A/+B/+O/)    ■ One output, 5V RS422(A+B+O and A/+B/+O/)       Another output push-pull,HTL(A+B+O and A/+B/+O/)         Electrical Data       Power supply   10-30VDC     Input signal    Push-pull or HTL (A+B+O and A/+B/+O/)(other option on enquiry)     Output            Group 1 power supply    10-30VDC (from PLC etc.)       Group 2 power supply    10-30VDC  (From Motor driver etc.)     Output frequency   Max.300KHZ     Output signal    Two groups Push-pull or HTL(A+B+O and A/+B/+O/). Two groups   RS422 (A+B+O and A/+B/+O/). One group 5V  RS422, one group push-pull or HTL  (A+B+O and A/+B/+O/)     Connect    Terminal connect.     Supply LED   Red LED     Isolation    Individual supply,opto isolation between the input     and output. Opto isolation between output1 and     output 2      Working enviroment                 EMS resistance     EN50081-1       Temperature    -20°C—+70°C     Mounting     DIN rail   35MM     Diameter   145x90x40     IP class     IP20     Weight    Approx.100g        DownLoad                                         Output push-pull or HTL, 5V RS422（line driver）
