Our different type and feature proximity switch suitable for your difference mechinccal positioning and present detection.

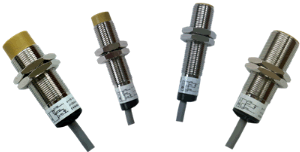

Cylindrical type proximity switch dimension:M8,M12,M18,M30 etc. Embedded or un-embedded installation. DC 2 wire
normally open or normally close output,3 wire PNP or NPN normally open or normally close out put,AC two-wire normally
open or normally close output. |
| ■Difference housing: M8,M12,M18,M30 |
| ■Embedded and un-embedded mounting |
| ■DC 3 wires, 2 wires version, AC version, normally open or normally close. |
| ■Cable outlet or connector outlet |
| ■High temperature version up to 100 °C |
| ■IP class: IP67 |
|
|
|
|
|
|
| Sensing range(Sn) |
1.5mm----15mm |
| Mounting |
embedded, un-embedded |
| Supply Voltage |
10-30VDC, 20-253VAC |
| Switch output: |
PNP, NPN, DC 2-wire, AC 2-wire |
| LED display |
yellow LED |
| Max. load current |
300mA |
| Max. frequency |
1200HZ |
| According to |
EN60947-5-2 |
| Connector |
Cable or standard European connector M12 or M8 |
| Working environment temperature |
-25-70°C, extended up to 100 °C |
| IP class |
IP67 |
| Housing material |
Brass, nickel plated |
| Sensing face |
PBT |
|
|
|
|
|
|
